TIG TORCHES

The right welding torch for every application – with just one hosepack. That’s possible because the new TIG welding torches can be individually adjusted to suit your personal preferences or the application at hand.



Do you find a large or small handle easier to hold? Or would you prefer to control your power source from the
torch? Maybe you want to improve component accessibility through the wide range of gas nozzles and torch bodies?

Regardless of your needs, our TIG welding torches offer you maximum flexibility.

Fronius advantages

- Modular design: In addition to different power categories, there are two handle versions that can be equipped with different operating elements and torch body versions.​

- Ergonomic and non-slip: The ergonomically designed handles of our new TIG welding torches protect users from fatigue, while soft components guarantee a non-slip, secure grip. The ball joint and the materials used make the hosepack very flexible and easy to handle, especially when the component is difficult to access.

- Cost saving and sustainable: The welding torch does not have to be thrown away if requirements change or in the event of damage. Instead, modules can simply be replaced. The component can be changed directly on site, without the help of a service technician, saving resources, time, and costs.

- Longer wearing part lifetimes: Perfect cooling right to the head of the torch body ensures reliable heat dissipation. This significantly increases the service life of the torch’s wearing parts.

GAS COOLED.png

 550 A

  UP TO

THP GAS COOLED

Welding current (ArCO2):

TIG DC 60/100% D.C.: 120/90 A

- TIG AC 60/100% D.C.: 90/70 A

- Hosepack length: 4/8 m

Product Code:

4,051,297 - THP 160i G ML/F/UD/4m/LED
4,051,298 - THP 160i G ML/F/UD/8m/LED
4,051,301 - THP 160i G ML/F/UD/Le/4m/LED
4,051,302 - THP 160i G ML/F/UD/Le/8m/LED
4,051,303 - THP 160i G ML/F/JM/Le/4m/LED
4,051,304 - THP 160i G ML/F/JM/Le/8m/LED


Welding current (ArCO2):

TIG DC 60/100% D.C.: 170/130 A

- TIG AC 60/100% D.C.: 130/120 A

- Hosepack length: 4/8 m

Product Code:

4,051,305 - THP 220i G ML/F/UD/4m/LED
4,051,306 - THP 220i G ML/F/UD/8m/LED
4,051,309 - THP 220i G ML/F/UD/Le/4m/LED
4,051,310 - THP 220i G ML/F/UD/Le/8m/LED
4,051,311 - THP 220i G ML/F/JM/Le/4m/LED
4,051,312 - THP 220i G ML/F/JM/Le/8m/LED


Welding current (ArCO2):

TIG DC 60/100% D.C.: 200/150 A

- TIG AC 60/100% D.C.: 160/120 A

- Hosepack length: 4/8 m

Product Code:

4,051,313 - THP 260i G ML/F/UD/4m/LED
4,051,314 - THP 260i G ML/F/UD/8m/LED
4,051,315 - THP 260i G ML/F/UD/Le/4m/LED
4,051,316 - THP 260i G ML/F/UD/Le/8m/LED
4,051,359 - THP 260i G ML /F/JM/Le/4m/LED
4,051,363 - THP 260i G ML /F/JM/Le/8m/LED


Welding current (ArCO2):

TIG DC 60/100% D.C.: 100/80 A

- TIG AC 60/100% D.C.: 70/50 A

- Hosepack length: 4/8 m

Product Code:

4,051,364 - THP 120 G SH ML/F/UD/Le/4m
4,051,365 - THP 120 G SH ML/F/UD/Le/8m
4,051,366 - THP 120 G SH ML/F/STD/Le/4m
4,051,367 - THP 120 G SH ML/F/STD/Le/8m
4,051,368 - THP 120 G SH ML/F/POT/Le/4m
4,051,369 - THP 120 G SH ML/F/POT/Le/8m
4,051,370 - THP 120 G SH ML/F/LT/Le/4m
4,051,371 - THP 120 G SH ML/F/LT/Le/8m
4,051,372 - THP 120 G SH ML/F/NT/Le/4m
4,051,373 - THP 120 G SH ML/F/NT/Le/8m


Welding current (ArCO2):

TIG DC 60/100% D.C.: 130/100 A

- TIG AC 60/100% D.C.: 90/70 A

- Hosepack length: 4/8 m

Product Code:

4,051,374 - THP 180 G SH ML/F/UD/Le/4m
4,051,375 - THP 180 G SH ML/F/UD/Le/8m
4,051,378 - THP 180 G SH ML/F/STD/Le/4m
4,051,379 - THP 180 G SH ML/F/STD/Le/8m
4,051,380 - THP 180 G SH ML/F/POT/Le/4m
4,051,381 - THP 180 G SH ML/F/POT/Le/8m
4,051,382 - THP 180 G SH ML/F/LT/Le/4m
4,051,383 - THP 180 G SH ML/F/LT/Le/8m
4,051,384 - THP 180 G SH ML/F/NT/Le/4m
4,051,385 - THP 180 G SH ML/F/NT/Le/8m


Welding current (ArCO2):

TIG DC 60/100% D.C.: 100/80 A

- TIG AC 60/100% D.C.: 70/50 A

- Hosepack length: 4/8 m

Product Code:

4,051,376 - THP 150 G SH ML/FS/UD/Le/4m
4,051,377 - THP 150 G SH ML/FS/UD/Le/8m

THP LIQUID-COOLED

Welding current (ArCO2):

TIG DC 60/100% D.C.: 300/230 A

- TIG AC 60/100% D.C.: 250/190 A

- Hosepack length: 4/8 m

Product Code:

4,051,321 - THP 300i W ML/F++/UD/Le/4m/LED
4,051,322 - THP 300i W ML/F++/UD/Le/8m/LED
4,051,323 - THP 300i W ML/F++/JM/Le/4m/LED
4,051,324 - THP 300i W ML/F++/JM/Le/8m/LED


Welding current (ArCO2):

TIG DC 60/100% D.C.: 400/300 A

- TIG AC 60/100% D.C.: 350/270 A

- Hosepack length: 4/8 m

Product Code:

4,051,329 - THP 400i W ML/F++/UD/Le/4m/LED
4,051,330 - THP 400i W ML/F++/UD/Le/8m/LED
4,051,331 - THP 400i W ML/F++/JM/Le/4m/LED
4,051,332 - THP 400i W ML/F++/JM/Le/8m/LED


Welding current (ArCO2):

TIG DC 60/100% D.C.: 500/400 A

- TIG AC 60/100% D.C.: 400/300 A

- Hosepack length: 4/8 m

Product Code:

4,051,337 - THP 500i W ML/F++/UD/Le/4m/LED
4,051,338 - THP 500i W ML/F++/UD/Le/8m/LED
4,051,339 - THP 500i W ML/F++/JM/Le/4m/LED
4,051,340 - THP 500i W ML/F++/JM/Le/8m/LED


Welding current (ArCO2):

TIG DC 60/100% D.C.: 300/230 A

- TIG AC 60/100% D.C.: 250/190 A

- Hosepack length: 4/8 m

Product Code:

4,051,337 - THP 500i W ML/F++/UD/Le/4m/LED
4,051,338 - THP 500i W ML/F++/UD/Le/8m/LED
4,051,339 - THP 500i W ML/F++/JM/Le/4m/LED
4,051,340 - THP 500i W ML/F++/JM/Le/8m/LED

TTB GAS COOLED

Welding current (ArCO2):

TIG DC 60/100% D.C.: 60/50 A

- TIG AC 35% D.C.: 30 A

- Electrode diameter: 1.0 - 3.2 mm

Product Code:

44,0350,5466 - TTB 80P G ML/70°/L50
44,0350,0525 - TTB 80P G ML /70°/L65
44,0350,5467 - TTB 80P G ML/70°/L150


Welding current (ArCO2):

TIG DC 60/100% D.C.: 120/90 A

- TIG AC 60/100% D.C.: 90/70 A

- Electrode diameter: 1.0 - 3.2 mm

Product Code:

44,0350,5448 - TTB 160A G ML /70°/L50
44,0350,5452 - TTB 160P G ML /70°/L50
44,0350,4406 - TTB 160A G ML/70°/L65
44,0350,4407 - TTB 160P G ML/70°/L65
44,0350,5449,630 - TTB 160A G ML OVT/70°/L150
44,0350,5450,630 - TTB 160A G ML OVT/70°/L300
44,0350,5453,630 - TTB 160P G ML OVT/70°/L150
44,0350,5454,630 - TTB 160P G ML OVT/70°/L300


Welding current (ArCO2):

TIG DC 60/100% D.C.: 120/90 A

- TIG AC 60/100% D.C.: 90/70 A

- Electrode diameter: 1.0 - 3.2 mm

Product Code:

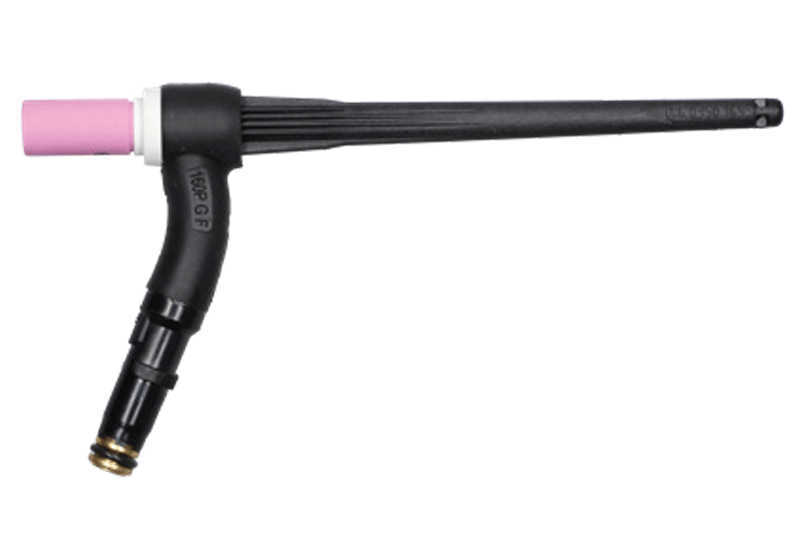

44,0350,5451 - TTB 160A G F ML /70°/L65
44,0350,5455 - TTB 160P G F ML /70°/L65


Welding current (ArCO2):

TIG DC 60/100% D.C.: 170/130 A

- TIG AC 60/100% D.C.: 130/100 A

- Electrode diameter: 1.0 - 4.0mm

Product Code:

44,0350,5457 - TTB 220A G ML /70°/L50
44,0350,5461 - TTB 220P G ML /70°/L50
44,0350,4408 - TTB 220A G ML/70°/L65
44,0350,4409 - TTB 220P G ML/70°/L65
44,0350,4409,630 - TTB 220P G ML OVT/70°/L65 TIG manual torch body OVT
44,0350,5458,630 - TTB 220A G ML OVT/70°/L150
44,0350,5459,630 - TTB 220A G ML OVT/70°/L300
44,0350,5462,630 - TTB 220P G ML OVT/70°/L150
44,0350,5463,630 - TTB 220P G ML OVT/70°/L300


Welding current (ArCO2):

TIG DC 60/100% D.C.: 160/130 A

- TIG AC 60/100% D.C.: 120/100 A

- Electrode diameter: 1.0 - 4.0 mm

Product Code:

44,0350,5460 - TTB 220A G F ML /70°/L65
44,0350,5464 - TTB 220P G F ML /70°/L65


Welding current (ArCO2):

TIG DC 60/100% D.C.: 200/150 A

- TIG AC 60/100% D.C.: 160/120 A

- Electrode diameter: 1.0 - 4.0 mm

Product Code:

44,0350,4410 - TTB 260A G ML/70°/L65

TTB LIQUID-COOLED

Welding current (ArCO2):

TIG DC 60/100% D.C.: 180/140 A

- TIG AC 60/100% D.C.: 140/110 A

- Electrode diameter: 1.0 - 3.2 mm

Product Code:

44,0350,5469 - TTB 180P W ML /70°/L50
44,0350,0526 - TTB 180P W ML /70°/L65
44,0350,5470 - TTB 180P W ML /70°/L150


Welding current (ArCO2):

TIG DC 60/100% D.C.: 300/230 A

- TIG AC 60/100% D.C.: 250/190 A

- Electrode diameter: 1.0 - 3.2 mm

Product Code:

44,0350,5471 - TTB 300A W ML /70°/L50
44,0350,5475 - TTB 300P W ML /70°/L50
44,0350,4411 - TTB 300A W ML/70°/L65
44,0350,4412 - TTB 300P W ML/70°/L65
44,0350,5472,630 - TTB 300A W ML OVT/70°/L150
44,0350,5473,630 - TTB 300A W ML OVT/70°/L300
44,0350,5476,630 - TTB 300P W ML OVT/70°/L150
44,0350,5477,630 - TTB 300P W ML OVT/70°/L300


Welding current (ArCO2):

TIG DC 60/100% D.C.: 300/230 A

- TIG AC 60/100% D.C.: 250/190 A

- Electrode diameter: 1.0 - 3.2 mm

Product Code:

44,0350,5474 - TTB 300A F W ML /70°/L65
44,0350,5478 - TTB 300P F W ML /70°/L65


Welding current (ArCO2):

TIG DC 60/100% D.C.: 400/300 A

- TIG AC 60/100% D.C.: 350/270 A

- Electrode diameter: 1.0 - 4.0 mm

Product Code:

44,0350,5480 - TTB 400A W ML /70°/L50
44,0350,5484 - TTB 400P W ML /70°/L50
44,0350,4413 - TTB 400A W ML/70°/L65
44,0350,4414 - TTB 400P W ML/70°/L65
44,0350,5481,630 - TTB 400A W ML OVT/70°/L150
44,0350,5482,630 - TTB 400A W ML OVT/70°/L300
44,0350,5485,630 - TTB 400P W ML OVT/70°/L150
44,0350,5486,630 - TTB 400P W ML OVT/70°/L300


Welding current (ArCO2):

TIG DC 60/100% D.C.: 400/300 A

- TIG AC 60/100% D.C.: 350/270 A

- Electrode diameter: 1.0 - 4.0 mm

Product Code:

44,0350,5483 - TTB 400A F W ML /70°/L65
44,0350,5487 - TTB 400P F W ML /70°/L65


Welding current (ArCO2):

TIG DC 60/100% D.C.: 500/400 A

- TIG AC 60/100% D.C.: 400/300 A

- Electrode diameter: 1.0 - 6.4 mm

Product Code:

44,0350,4415 - TTB 500A W ML/70°/L65
44,0350,4416 - TTB 500P W ML/70°/L65
